黑色橡胶挠性连接管结构牢固工作可靠

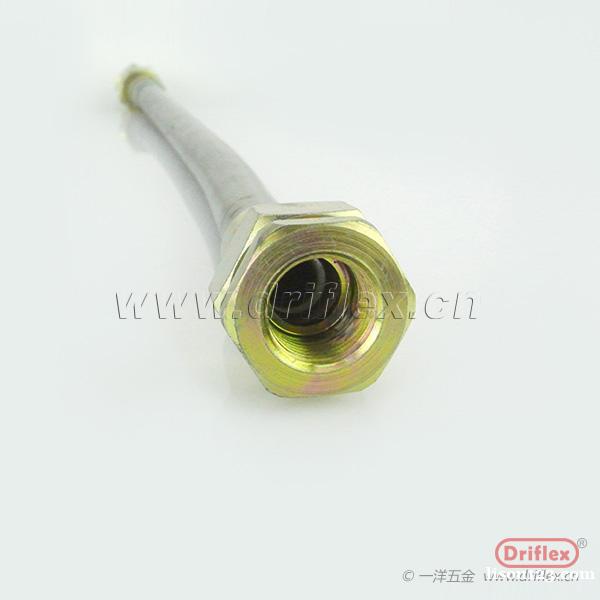

橡胶防爆挠性连接管
| 型号 Part No. | 管内径 I.D(mm) | 接头管螺纹 （G") | 长度 Length(mm) | 弯曲半径 Bending Radius(mm) |
| EXR700xG1/2" | 15.0 | 1/2" | 700 | 80 |
| EXR1000xG1/2" | 15.0 | 1/2" | 1000 | 80 |
| EXR700xG3/4" | 20.0 | 3/4" | 700 | 110 |
| EXR1000xG3/4" | 20.0 | 3/4" | 1000 | 110 |
| EXR700xG1" | 25.0 | 1" | 700 | 145 |
| EXR1000xG1" | 25.0 | 1" | 1000 | 145 |
| EXR700xG1‐1/4" | 32.0 | 1‐1/4" | 700 | 160 |
| EXR1000xG1‐1/4" | 32.0 | 1‐1/4" | 1000 | 180 |
| EXR700xG1‐1/2" | 40.0 | 1‐1/2" | 700 | 210 |
| EXR1000xG1‐1/2" | 40.0 | 1‐1/2" | 1000 | 210 |
| EXR700xG2" | 50.0 | 2" | 700 | 250 |
| EXR1000xG2" | 50.0 | 2" | 1000 | 250 |
| EXR700xG2‐1/2" | 70.0 | 2‐1/2" | 700 | 350 |
| EXR1000xG2‐1/2" | 70.0 | 2‐1/2" | 1000 | 350 |
| EXR700xG3" | 80.0 | 3" | 700 | 400 |
| EXR1000xG3" | 80.0 | 3" | 1000 | 400 |
| EXR700xG4" | 100.0 | 4" | 700 | 500 |
| EXR1000xG4" | 100.0 | 4" | 1000 | 500 |
适用范围：
1区 2区危险场所。
ⅡA、ⅡB、ⅡC 类爆炸性气体环境。
产品特点：
具有耐燃、、耐水、耐老化、挠性良好、结构牢固、工作可靠等特点。 橡胶防爆挠性连接软管长度，可根据用户需要特殊加工。 配套碳钢内丝、外丝接头螺纹标准有: 英制G螺纹、美标NPT螺纹、 公制ISO等。
标注螺纹规格时应注明内、外丝螺纹。 产品符合GB3836‐2000,IEC60079标准要求。
